In April 2021, Ingenuity (the small helicopter stored in NASA’s Perseverance Mars rover) will perform the first powered, controlled flight on another planet. And NASA put a small piece of fabric on the Mars helicopter from the wing of Wright Brothers’ first aircraft, the “Flyer 1”, which performed the first powered, controlled flight here on Earth on December 17, 1903. The swatch is bound in insulating tape to a wire under Ingenuity’s solar panel.

On December 17, 1903, Orville Wright (August 19, 1871 – January 30, 1948) made the first powered, controlled flight on Earth while his brother Wilbur (April 16, 1867 – May 30, 1912) cheered him on from the ground, running at the plane’s wingtip.

First flight of the Wright Flyer I in1903
First flight of the Wright Flyer I, December 17, 1903, Orville Wright piloting, Wilbur Wright running at wingtip. This was the first powered, controlled flight in history. Photo: Wikipedia

The first flight performed by Orville at 10:35 am, which the Flyer I covered 120 feet (37 meters) in 12 seconds, at a speed of only 6.8 miles per hour (10.9 km/h) over the ground. It was recorded in a famous photograph (the photo above).

Then, Wilbur performed the second powered, controlled flight in history and he covered approximately 175 feet (53) with an altitude of 10 feet (3 meters) above the ground.

Wright brothers performed four flights that day. In the third flight, performed again by Orville, the Flyer I covered 200 feet (61 meters), again at an altitude of about 10 feet (3 meters).

Wilbur started the fourth and last flight at just about 12 o’clock. The first few hundred feet were up and down, as in the previous three flights, but by the time three hundred ft had been covered, the machine was under much better control. The course for the next four or five hundred feet had but little undulation. However, when out about eight hundred feet the machine began pitching again, and, in one of its darts downward, struck the ground. The distance over the ground was measured to be 852 feet (260 meters), the time of the flight was 59 seconds.

Now, most probably in April 2021, NASA’s Ingenuity Mars Helicopter will perform the first powered, controlled flight on another world while we cheer from the planet next door!

Ingenuity Mars helicopter

As an homage to Wright Brothers’ historic flight, NASA put a stamp-sized piece of fabric from the wing of Flyer 1 on the Ingenuity Mars Helicopter. The swatch is bound in insulating tape to a wire under Ingenuity’s solar panel.

The small robotic helicopter Ingenuity has been on Mars since February 18, 2021, attached to the underside of NASA’s Perseverance rover. Its purpose is to test NASA’s Mars helicopter technology, with the potential to scout locations of interest and support the future planning of driving routes for Mars rovers.

An illustration of NASA Ingenuity Helicopter flying on Mars
An illustration of NASA’s Ingenuity Helicopter flying on Mars. Image Credits: NASA/JPL-Caltech

It will also pave the way for other more capable aerial vehicles that could take photographs of places we’ve never seen before. Ingenuity ad future aerial vehicles could scout complex, dangerous, or impossible paths for ground vehicles.

Ingenuity is expected to fly up to five times during its 30-day test campaign.

NASA’s Mars Helicopter, Ingenuity (Ultra-HD Trailer). Ingenuity has landed on the Red Planet on February 18, 2021, aboard the Perseverance Mars rover. Its mission: to demonstrate the first powered, controlled flight on another world.

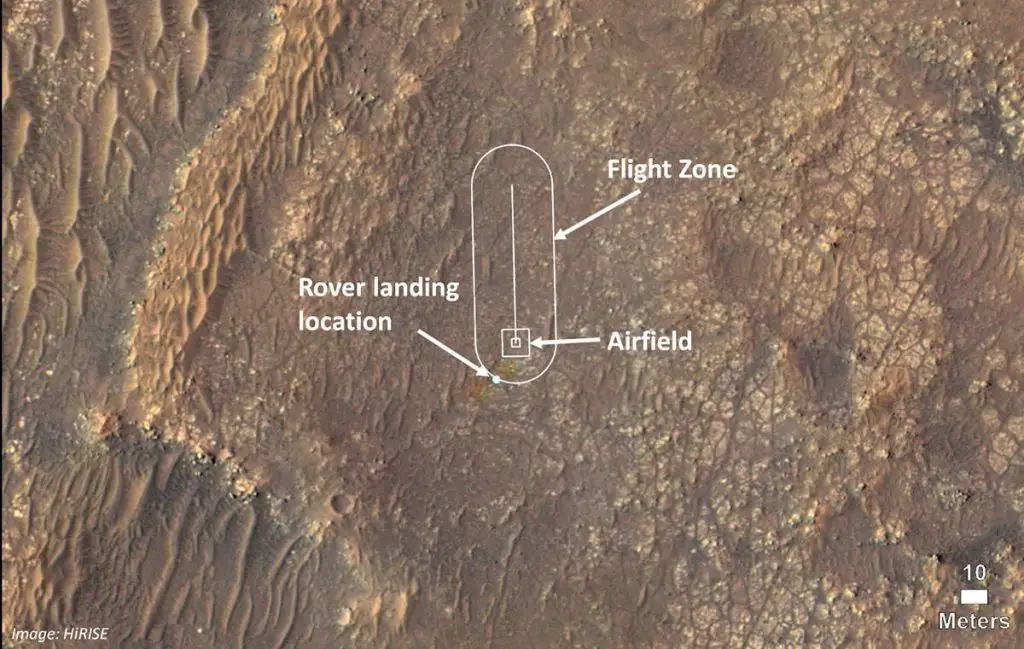

Map of Ingenuity Helicopter Flight Zone

Map of Ingenuity Helicopter Flight Zone
The map of NASA’s Ingenuity Mars Helicopter Flight Zone. Photo: NASA

The image above shows where NASA’s Ingenuity Mars Helicopter team will attempt its test flights. Helicopter engineers added the locations for the rover landing site (also known as “Octavia E. Butler Landing”, see notes 1), the airfield (the area where the helicopter will take off and return), and the flight zone (the area within which it will fly) on an image taken by the High-Resolution Imaging Experiment (HiRISE) camera aboard NASA’s Mars Reconnaissance Orbiter.

Some small rainbow-like color distortions (which do not actually appear on the terrain of Mars) are seen in this image near the landing location because of the way pre- and post-landing color images were merged.

Press release by NASA

Here’s the press release by NASA, titled “NASA Ingenuity Mars Helicopter Prepares for First Flight”.

NASA is targeting no earlier than April 8 for the Ingenuity Mars Helicopter to make the first attempt at a powered, controlled flight of an aircraft on another planet. Before the 4-pound (1.8-kilogram) rotorcraft can attempt its first flight, however, both it and its team must meet a series of daunting milestones.

Ingenuity remains attached to the belly of NASA’s Perseverance rover, which touched down on Mars on February 18, 2021. On March 21, the rover deployed the guitar case-shaped graphite composite debris shield that protected Ingenuity during landing. The rover currently is in transit to the “airfield” where Ingenuity will attempt to fly. Once deployed, Ingenuity will have 30 Martian days, or sols, (31 Earth days) to conduct its test flight campaign.

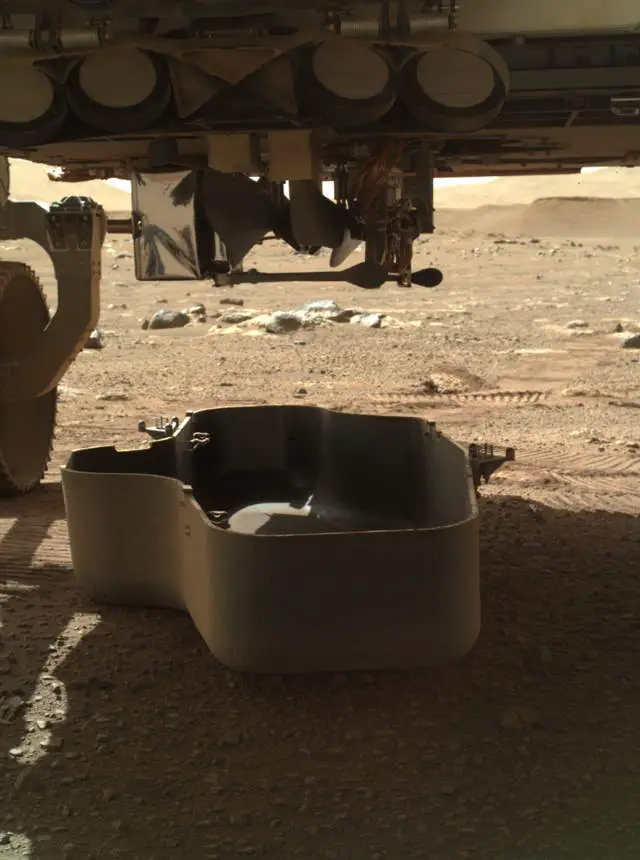

Ingenuity Helicopter exposed to Mars while being attached to the rover on the removal of debris shield. Photo by NASA – https://mars.nasa.gov/mars2020/multimedia/raw-images/SIF_0030_0669611931_110EBY_N0030828SRLC07000_0000LUJ, Public Domain, Link

“When NASA’s Sojourner rover landed on Mars in 1997, it proved that roving the Red Planet was possible and completely redefined our approach to how we explore Mars. Similarly, we want to learn about the potential Ingenuity has for the future of scientific research,” said Lori Glaze, the director of the Planetary Science Division at NASA Headquarters. “Aptly named, Ingenuity is a technology demonstration that aims to be the first powered flight on another world and, if successful, could further expand our horizons and broaden the scope of what is possible with Mars exploration.”

Flying in a controlled manner on Mars is far more difficult than flying on Earth. The Red Planet has significant gravity (about one-third that of Earth’s) but its atmosphere is just 1% as dense as Earth’s at the surface. During Martian daytime, the planet’s surface receives only about half the amount of solar energy that reaches Earth during its daytime, and nighttime temperatures can drop as low as minus 130 degrees Fahrenheit (minus 90 degrees Celsius), which can freeze and crack unprotected electrical components.

To fit within the available accommodations provided by the Perseverance rover, the Ingenuity helicopter must be small. To fly in the Mars environment, it must be lightweight. To survive the frigid Martian nights, it must have enough energy to power internal heaters. The system – from the performance of its rotors in rarified air to its solar panels, electrical heaters, and other components – has been tested and retested in the vacuum chambers and test labs of NASA’s Jet Propulsion Laboratory in Southern California.

“Every step we have taken since this journey began six years ago has been uncharted territory in the history of aircraft,” said Bob Balaram, Mars Helicopter chief engineer at JPL. “And while getting deployed to the surface will be a big challenge, surviving that first night on Mars alone, without the rover protecting it and keeping it powered, will be an even bigger one.”

Deploying the Helicopter

Before Ingenuity takes its first flight on Mars, it must be squarely in the middle of its airfield – a 33-by-33-foot (10-by-10-meter) patch of Martian real estate chosen for its flatness and lack of obstructions. Once the helicopter and rover teams confirm that Perseverance is situated exactly where they want it to be inside the airfield, the elaborate process to deploy the helicopter on the surface of Mars begins.

“As with everything with the helicopter, this type of deployment has never been done before,” said Farah Alibay, Mars Helicopter integration lead for the Perseverance rover. “Once we start the deployment there is no turning back. All activities are closely coordinated, irreversible, and dependent on each other. If there is even a hint that something isn’t going as expected, we may decide to hold off for a sol or more until we have a better idea of what is going on.”

The helicopter deployment process will take about six sols (a sol is a Martian day, slightly longer than an Earth day, six sols is about six days, four hours on Earth):

  1. On the first sol, the team on Earth will activate a bolt-breaking device, releasing a locking mechanism that helped hold the helicopter firmly against the rover’s belly during launch and Mars landing.
  2. The following sol, they will fire a cable-cutting pyrotechnic device, enabling the mechanized arm that holds Ingenuity to begin rotating the helicopter out of its horizontal position. This is also when the rotorcraft will extend two of its four landing legs.
  3. During the third sol of the deployment sequence, a small electric motor will finish rotating Ingenuity until it latches, bringing the helicopter completely vertical.
  4. During the fourth sol, the final two landing legs will snap into position. On each of those four sols, the Wide Angle Topographic Sensor for Operations and eNgineering (WATSON) imager will take confirmation shots of Ingenuity as it incrementally unfolds into its flight configuration. In its final position, the helicopter will hang suspended at about 5 inches (13 centimeters) over the Martian surface. At that point, only a single bolt and a couple of dozen tiny electrical contacts will connect the helicopter to Perseverance.
  5. On the fifth sol of deployment, the team will use the final opportunity to utilize Perseverance as a power source and charge Ingenuity’s six battery cells. “Once we cut the cord with Perseverance and drop those final five inches to the surface, we want to have our big friend drive away as quickly as possible so we can get the Sun’s rays on our solar panel and begin recharging our batteries,” said Balaram.
  6. On the sixth and final scheduled sol of this deployment phase, the team will need to confirm three things: that Ingenuity’s four legs are firmly on the surface of Jezero Crater, that the rover did, indeed, drive about 16 feet (about 5 meters) away, and that both helicopter and rover are communicating via their onboard radios. This milestone also initiates the 30-sol clock during which time all preflight checks and flight tests must take place.

“Ingenuity is an experimental engineering flight test – we want to see if we can fly at Mars,” said MiMi Aung, project manager for Ingenuity Mars Helicopter at JPL. “There are no science instruments onboard and no goals to obtain scientific information. We are confident that all the engineering data we want to obtain both on the surface of Mars and aloft can be done within this 30-sol window.”

As with deployment, the helicopter and rover teams will approach the upcoming flight test methodically. If the team misses or has questions about an important preflight milestone, they may take one or more sols to better understand the issue.

If the helicopter survives the first night of the sequence period on the surface of Mars, however, the team will spend the next several sols doing everything possible to ensure a successful flight, including wiggling the rotor blades and verifying the performance of the inertial measurement unit, as well as testing the entire rotor system during a spin-up to 2,537 rpm (while Ingenuity’s landing gear remain firmly on the surface).

The First Flight Test on Mars

Once the team is ready to attempt the first flight, Perseverance will receive and relay to Ingenuity the final flight instructions from JPL mission controllers. Several factors will determine the precise time for the flight, including modeling of local wind patterns plus measurements taken by the Mars Environmental Dynamics Analyzer (MEDA) aboard Perseverance.

Ingenuity will run its rotors to 2,537 rpm and, if all final self-checks look good, lift-off. After climbing at a rate of about 3 feet per second (1 meter per second), the helicopter will hover at 10 feet (3 meters) above the surface for up to 30 seconds. Then, the Mars Helicopter will descend and touch back down on the Martian surface.

Several hours after the first flight has occurred, Perseverance will downlink Ingenuity’s first set of engineering data and, possibly, images and video from the rover’s Navigation Cameras and Mastcam-Z. From the data downlinked that first evening after the flight, the Mars Helicopter team expect to be able to determine if their first attempt to fly at Mars was a success.

On the following sol, all the remaining engineering data collected during the flight, as well as some low-resolution black-and-white imagery from the helicopter’s own Navigation Camera, could be downlinked to JPL. In the third sol of this phase, the two images taken by the helicopter’s high-resolution color camera should arrive. The Mars Helicopter team will use all information available to determine when and how to move forward with their next test.

“Mars is hard,” said Aung. “Our plan is to work whatever the Red Planet throws at us the very same way we handled every challenge we’ve faced over the past six years – together, with tenacity and a lot of hard work, and a little Ingenuity.”

A Piece of History

While Ingenuity will attempt the first powered, controlled flight on another planet, the first powered, controlled flight on Earth took place December 17, 1903, on the windswept dunes of Kill Devil Hill, near Kitty Hawk, North Carolina. Orville and Wilbur Wright covered 120 feet in 12 seconds during the first flight. The Wright brothers made four flights that day, each longer than the previous.

A small amount of the material that covered one of the wings of the Wright brothers’ aircraft, known as the Flyer, during the first flight is now aboard Ingenuity. An insulative tape was used to wrap the small swatch of fabric around a cable located underneath the helicopter’s solar panel.

The Wrights used the same type of material – an unbleached muslin called “Pride of the West” – to cover their glider and aircraft wings beginning in 1901. The Apollo 11 crew flew a different piece of the material, along with a small splinter of wood from the Wright Flyer, to the Moon and back during their iconic mission in July 1969.

More About Ingenuity

The Ingenuity Mars Helicopter was built by JPL, which also manages the technology demonstration for NASA Headquarters. It is supported by NASA’s Science Mission Directorate, the NASA Aeronautics Research Mission Directorate, and the NASA Space Technology Mission Directorate. NASA’s Ames Research Center and Langley Research Center provided significant flight performance analysis and technical assistance.

At NASA Headquarters, Dave Lavery is the program executive for the Ingenuity Mars Helicopter. At JPL, MiMi Aung is the project manager and J. (Bob) Balaram is the chief engineer.

Notes

  1. Octavia Estelle Butler (June 22, 1947 – February 24, 2006) was an American science fiction author. NASA named the landing site of the Perseverance rover in Jezero crater on Mars the “Octavia E. Butler Landing” in her honor.
