The complex processes of Earth’s ionosphere may occur far above the planet’s surface, but when monitored from numerous locations at sufficient distances, they can be measured using inexpensive equipment on the ground. Dr. Charles Smith at the University of New Hampshire has assembled an extensive team to do just that, with participants ranging from space scientists with decades of experience to high school students considering futures in science and engineering. Named Space Weather Underground, the project could soon make extensive data on ionosphere dynamics available to scientists and the public alike.

Earth’s Ionosphere

With its lower edge situated around 60 kilometers (38 miles) above our heads, the ionosphere contains an abundance of atoms and molecules that have been ionized by the Sun’s powerful radiation. Just as the atmosphere closer to Earth’s surface displays the vibrant weather patterns that we witness every day, the ionosphere is also in a constant state of change – although its motions are driven by entirely different processes. Rather than factors such as temperature and pressure, they are driven by the fact that streams of moving charged particles – known as currents – generate their own magnetic fields, and can also be generated by external magnetic fields.

Since the charged particles in the ionosphere are intrinsically connected to the Earth’s magnetic field, they can be driven to form currents by processes that disrupt the field, such as high-energy bursts of the plasma thrown out by the Sun. Once set in motion, these currents then generate magnetic fields of their own, which can be measured from the ground.

One particularly important aspect of these fields is that they can distort the radio waves that satellite systems use to communicate. Therefore, by understanding precisely how these currents flow, researchers can gain important insights into the complex “weather” of interplanetary space, while also finding ways to mitigate potential disruptions to our communications and navigation systems.

Space weather

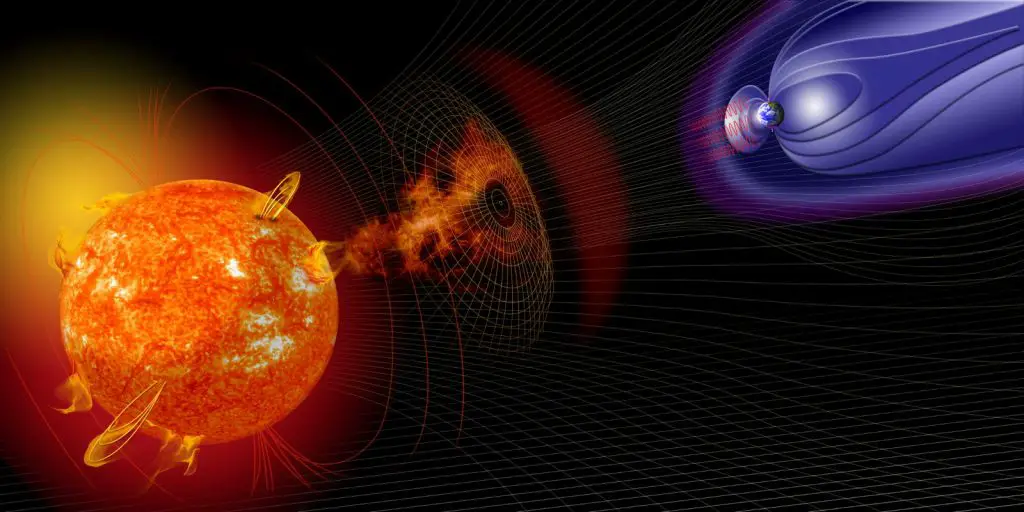

Space weather: Artist illustration of events on the sun changing the conditions in Near-Earth space. Image: NASA
When solar storms release solar flares and coronal mass ejections, or CMEs, toward Earth, we can feel the effects here on the ground. They can interfere with our magnetic field and produce geomagnetically induced currents, or GICs. These GICs impact our electric grid and can cause permanent damage to critical grid components, including high-voltage transformers.

Measuring Ionic Currents

To detect currents in the ionosphere, the magnetic fields they create must first be picked up by devices called magnetometers, which can measure the strength and direction of the field, and register any changes in these values over time. Perhaps the most well-known example of a magnetometer is a compass, which aligns its needle with Earth’s magnetic field; though more accurate devices are required to pick up the subtle fields created by ionospheric currents.

Since these charged particle motions play out on scales of hundreds of kilometers, researchers can only measure them by spreading out numerous magnetometers over large distances. This is most effective if the devices are incorporated into expansive networks, or “arrays”, which transmit their measurements to central data centers.

So far, such measurements have typically involved cutting-edge instruments that are extremely sensitive, capable of detecting incredibly subtle changes in magnetic field strengths and directions. However, such a sophisticated apparatus is by no means essential. According to Dr. Charles Smith at the University of New Hampshire, there are numerous advantages to using simpler, far less expensive magnetometers.

Measuring Space Weather – Possibilities with Simpler Instruments

Measuring space weather: SAM-III magnetometer
Measuring space weather: SAM-III magnetometers are ideal tools for monitoring currents in Earth’s ionosphere, their assembly, deployment, and monitoring provide a unique educational opportunity for local high school students.

Rather than high degrees of accuracy, Dr. Smith believes that measurements of ionospheric currents should benefit more from a higher number of measurements, taken using larger arrays. With this in mind, he is now building an extensive magnetometer array using the 3-Axis Simple Aurora Monitor (SAM-III) – a semi-professional device manufactured by Reeve Electronics in Alaska. Often used by hobbyists, such as radio amateurs and photographers of the Aurora Borealis, these magnetometers can be purchased as kits costing just $500.

As well as their low cost, the circuitry of a SAM-III device is easy to assemble, with step-by-step instructions appearing on a graphical interface as the user progresses. For Dr. Smith’s team, this presents a further advantage: that their project can accommodate the skills of young people who are considering careers in science and engineering. Together, these advantages mean that while SAM-III magnetometers are ideal tools for monitoring currents in Earth’s ionosphere, their assembly, deployment, and monitoring provide a unique educational opportunity for local high school students.

Deploying for Measurement

The efforts of Dr. Smith’s team to deploy an extensive array of SAM-III magnetometers have now culminated in the Space Weather Underground (SWUG) project – a collaboration between his colleagues at the University of New Hampshire (UNH), and high schools across northern New England. To guide the project, Dr. Smith has drawn out precise guidelines for schools to build their own magnetometers.

Once they have been assembled by students, the SAM-III devices need to be mounted into “trees” made from PVC plastic, which enables their sensors to be precisely oriented parallel to Earth’s magnetic field. Then, they must be placed in watertight tubes, which are buried vertically in the ground to prevent their contents from freezing or overheating in the long term. An extension of the tube above the ground then houses all of the necessary electronics.

As data is collected, it is transmitted through a radio antenna to a Raspberry Pi computer at the school, from which it flows into a central data center, located at UNH. Finally, a solar panel mounted on a post next to the tube provides power to each setup, while a battery pack stores the excess power it generates for nighttime operation.

Taking Precautions

Before a magnetometer in the SWUG array can begin operation, a number of precautions need to be taken to maximize the quality of its measurements. In order to avoid any measurement disturbances from magnetic fields associated with human activity, such as electrical currents, Dr. Smith advises that they should be deployed in a remote location about a quarter of a mile from each school. Furthermore, since the clocks that SAM-III magnetometers use to time their measurements can drift by up to a second each day, each school must attach a GPS chip to their system, to ensure the measurements of all devices in the array are synchronized with each other.

Finally, Dr. Smith instructs that the devices should take one magnetic field measurement every two seconds. This is slower than SAM-III’s maximum measurement speed but enables the device to operate more reliably, while still allowing it to detect any important events.

Since first drawing out detailed plans for the project in 2019, the SWUG team has needed to navigate the numerous challenges presented by Covid-19. However, having fully assembled and demonstrated the setup at UNH, Dr. Smith hopes that the project will progress rapidly once schools reopen. Furthermore, earlier results, presented in December 2019, reveal a promising potential future for the project.

Encouraging Early Results

In October 2019, several ionosphere monitors in eastern Canada – which borders New Hampshire – picked up the key signs of an ionospheric current passing through Earth’s mid-latitudes. For Dr. Smith’s team, this presented an ideal opportunity for testing the early SWUG array. Just as they hoped, SAM-III magnetometers in Exeter and Durham – home to the UNH campus – also clearly detected the signal, which endured for around one hour in the early morning.

“We presented these early results at the 2019 Fall American Geophysical Union conference, where we brought two high school students to aid in the presentation,” says Dr. Smith.

Since the two devices were spaced less than 20 kilometers (12.5 miles) apart, their combined measurements could not be used to determine the large-scale, time-varying properties of the ionospheric current responsible for the signal. However, the results were a key demonstration that each of the devices was able to reliably carry out its role, and could be used to gather useful data if incorporated into a larger network.

“The goal is that with multiple sites running accurate clocks, we can time the passage of a magnetic disturbance across the surface of the Earth, determine its speed and direction, and relate it to other ionospheric activities as measured by spacecraft,” explains Dr. Smith.

Plans for Expansion

To reach this point, Dr. Smith’s team now hopes to expand the SWUG array across northern New England, and even further afield within the US – with two magnetometers now under construction at high schools in the Midwest. As the network expands, the team will be able to triangulate the time-varying positions of ionospheric currents increasingly accurately, allowing for observations with a similar quality to those made by expensive, well-established ionosphere monitors.

Dr. Smith and his colleagues will now continue to work towards this goal by building relationships with high school students and their teachers, allowing student-built magnetometers to be deployed across numerous locations. They will also expand the data center at UNH to handle an increasing flow of incoming information, as more magnetometers are incorporated. Furthermore, they plan to expand the online presence of the SWUG project through a website. These measures will allow the team to achieve their overall goal of detecting activity in the Earth’s upper atmosphere and associating it with activity in the global ionosphere.

Measuring space weather: SAM III magnetometer
Measuring space weather: Dr. Smith and his colleagues will now continue to work towards this goal by building relationships with high school students and their teachers, allowing student-built magnetometers to be deployed across numerous locations.

New Opportunities

When the SWUG (Space Weather Underground) array becomes fully operational, Dr. Smith and his colleagues will aim to make the data it produces completely free to access – open not only to members of the public who are interested in the project but also to real scientists conducting their own research.

Alongside this advantage, the project represents a highly unique way to introduce high school students to an active field of research, before they even begin university. Ultimately, the project soon promises to offer important new insights into the diverse and ever-changing dynamics of the Earth’s ionosphere and the communications systems they affect.

Meet the researcher: Dr. Charles Smith

Dr. Charles Smith
Dr. Charles Smith – Department of Physics, University of New Hampshire, Durham, NH, USA

Dr. Smith completed his Ph.D. in Physics at the College of William and Mary in 1981, after which he worked at numerous prestigious institutes, including the University of New Hampshire and the University of Delaware. Since 2003, he has worked as a Research Professor at the University of New Hampshire, where his research interests include space plasma physics, interplanetary magnetic fields and their interaction with Earth, and the interpretation of spacecraft data.

Dr. Smith has been involved with a variety of NASA spacecraft missions throughout his career, including the Advanced Composition Explorer (ACE) Magnetometer Experiment, and the EMFISIS Instrument Suite aboard the Van Allen Probes. He now coordinates the Space Weather Underground (SWUG) collaboration, which is enhancing educational opportunities for high school students in New England.

Contact

Key Collaborators

  • Harald Kucharek, University of New Hampshire – the professor who developed the deployment hardware
  • Marc Lessard, University of New Hampshire – expert in the field who is making connections to established science
  • Michael Routhier, University of New Hampshire – professor leading the development of the SWUG Data CenterJohn Blackwell, Phillips-Exeter Academy – first high-school teacher to have a magnetometer up and running
  • Rich Levergood, Londonderry High School – high-school teacher (now retired) whose students have built more magnetometers than any other school
  • Scott Goelzer, Coe-Brown Academy – a high-school teacher whose students have set up the latest deployment, and who is central to the “summer ballooning program”, in which high-school students build magnetometers and fly them to 100,000 feet
  • Carol Young, CONVAL Peterborough High School – high-school teacher and Dr. Smith’s initial contact at CONVAL
  • Andria Johnson, CONVAL Peterborough High School – a high-school teacher who has a working magnetometer awaiting indoor deployment once schools reopen
  • Dave McKenney, Plymouth High School – a high-school teacher whose students have finished their initial build, to be deployed once schools reopen
  • Julie Burton, The Bromfield School, Harvard – a high-school teacher whose magnetometer will be the most southern in the array
  • Elizabeth England, Winnisquam High School – a high-school teacher whose build will resume once schools reopen
  • Andwar Heliovore, Hillsboro-Deering High School – a high-school teacher whose build will resume once schools reopen
  • Sara Cathey, Oyster River High School – a high-school teacher whose build will resume once schools reopen
  • Stephen Zaffke, Austin High School, Minnesota – a high-school teacher whose students are building one of two magnetometers in the Midwest, as the UNH team works to seed a new array there
  • Nick Goeldi, Ripon High School, Wisconsin – a high-school teacher whose students are building the second Midwestern seed

Funding

US National Science Foundation


This article originally appeared in Scientia, a publication helping to connect science and society. The original article is titled “Space Weather Underground: A Magnetometer Array with Educational Opportunities” and the original author is Dr. Charles Smith. For more interesting science news, visit the Scientia website.
